Home / Products / Rock Wool Insulation / Rock Wool Pipe
  • Heat Insulation Rock Wool Pipe
  • Heat Insulation Rock Wool Pipe

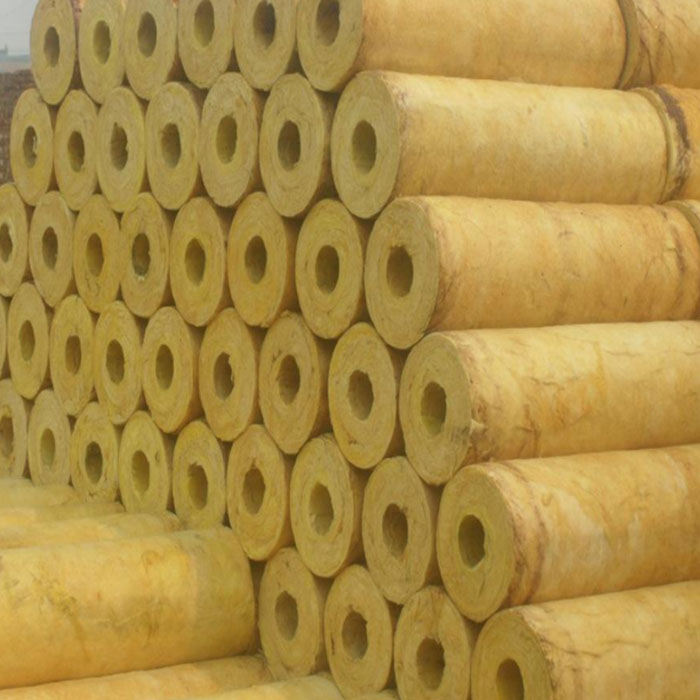

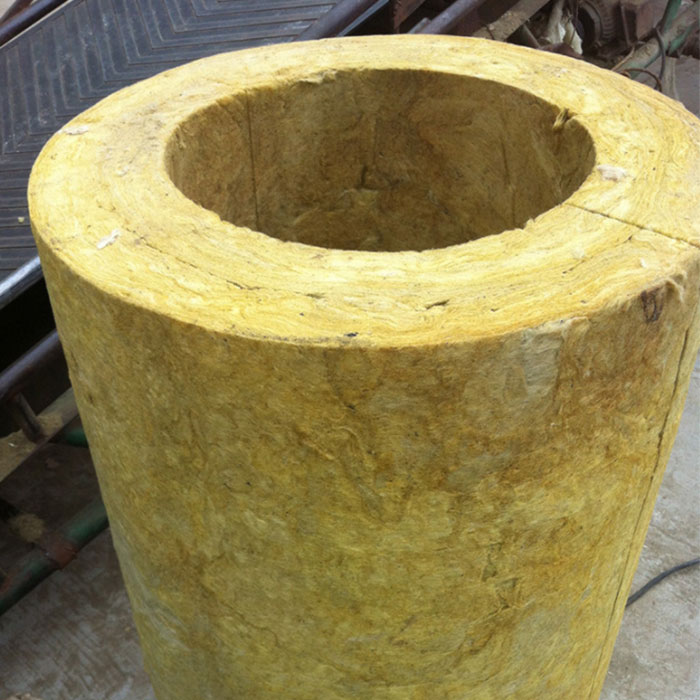

Heat Insulation Rock Wool Pipe

Rock Wool is made from basalt, an inorganic raw material.

Product parameters

ID(mm)Thickness(mm)
22304050607080//
27304050607080//
34304050607080//
43304050607080//
48304050607080//
60304050607080//
76304050607080100120
89304050607080100120
114304050607080100120
140304050607080100120
165304050607080100120
175304050607080100120
219304050607080100120
273304050607080100120
325304050607080100120
356304050607080100120
377////7080100120
426////7080100120
480////7080100120
530////7080100120
630////7080100120
720////7080100/
Density60Kg/m³-150kg /m³
FacingAluminum Foil

Product Features

Mineral rock wool pipe covering is produced from non-combustible mineral fibers. It is strong and rigid and suitable for application on process and piping works operating of maximum temperature 650°C. Each section of Rock wool Pipe can be split at one side and hinged at the other side far easy install.


Advantages:

Excellent fiber strength, low shot content.

Non-toxic

Waterproof fire resistance

Simple and fast installation

Low heat conductivity


Application:

Rockwool pipe is widely used in varies of high-temperature pipe, tank and equipment insulation of the domain of oil, chemical, metal and so on. Also can be used in thermal insulation of boats and the insulation and sound absorption of the buildings wall and ceiling .


The production process of the rock wool pipe:


Rock Wool Pipe/ Rock Wool Tube

TECHNICAL INDICATORS

PropertiesValue
Density60-150 Kg/m3
Shot content (particle diameter ≥0.25mm), %≤12.0
Average fiber diameter, μm≤7.0
Density tolerance, %+15, -15
Thermal conductivity coefficient (average temperature: 70±2℃), W/(m. K)≤0.043
Thermal load contraction temperature (products with density above 60kg/m3),≤ 600
Acidity coefficient mk≥ 1.6
Moisture content, %≤0.5
Combustion propertyNon-combustible(A class)
Organic material content, %≤ 4.0
Water repellence (water-proof), %≥ 98
Water absorption (water-proof), %≤ 5
Max Application Temperature ℃650

FAQ

FAQ

1. Are you a manufacturer or a trading company?

We are a manufacturer which has 30 years' history.

2. Can you accept OEM or ODM?

Of course, Logo is also acceptable.

3. What is the delivery time?

About 10-20 days after the contract signing.

4. What is your payment methods?

T/T L/C Paypal West Union and others .

5. Where is your manufacturer? How to visit it?

Our factory located in Binhai New Area, Tianjin, China. Mainly producing pre-insulated pipes, mineral wool insulation products and other insulating materials. You can take a plane to Beijing or Tianjin, then take a train to our company.

6. How do we control our products' quality?

We have professional quality control workers and quality inspection machine to control the entire production quality. We can also provide an inspection which was offered by a third party.

7. Can I customize some other sizes of products?

Yes! We can according to the customer's request. If you have any other questions, please don't hesitate, contact us.

SERVICE

SERVICE

1. Timely response: to your inquiry in 24 hours, quickly respond mails and provide solutions.

2. Free sample: Sample and trial order are accepted for the quality evaluation.

3. Shorter delivery time: Book the earliest vessel or plane to guarantee the delivery time.

4. Professional Services: Provide high or cold temperature solutions and professionals installation and technology services for you.
