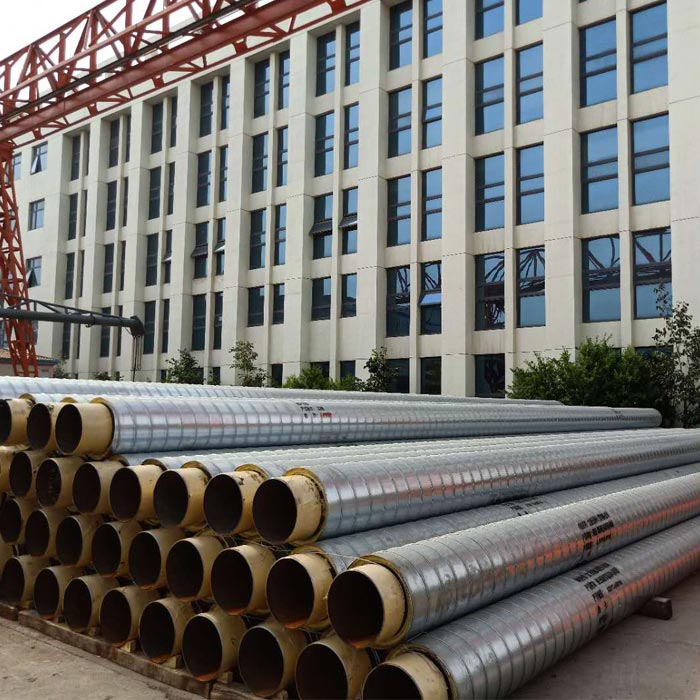

Overhead Insulated Pipe

Overhead Insulated Pipe

Product parameters

Product nameGalvanized iron jacket insulated pipe
Length6-12m, or by customer's requirements
Thickness of Insulation layer32-60mm
Medium teperature50°C-120°C, Max: 140°C
ApplicationFor chilled water tranfer system
Production StandardThe national standard GB/T29047-2012, CJ/T114-2000, CJ/T155-2001
PackageWith the plastic or steel end caps on both the pipe ends

Product Features

Product nameGalvanized iron jacket insulated pipe
Length6-12m, or by customer's requirements
Thickness of Insulation layer32-60mm
Medium teperature50°C-120°C, Max: 140°C
ApplicationFor chilled water tranfer system
Production StandardThe national standard GB/T29047-2012, CJ/T114-2000, CJ/T155-2001
PackageWith the plastic or steel end caps on both the pipe ends

TECHNICAL INDICATORS

Nominal diameterOD ×Thickness(mm)Outer protection tube diameter ×Wall thickness(mm)Insulation thickness(mm)
2532x390x2.329
3243x3110x2.533
4048x3110x2.531
5057x3125x2.534
6576x3.5140x333
8089x4160x3.033
100108x4200x3.236
125133x4.5225x3.546
150159x4.5250x3.945.5
200219x6315x4.948
250273x6365x5.646
300325x7420x747.5
350377x7500x7.861.5
400426x7550x8.862
450478x7600x9.861
500529x7655x9.863
600630x8760x1165
700720x8850x1265
800820x9960x1370
900920x101054x1467
10001020x121155x1477
12001220x121380x1580
14001420x141680x16114

FAQ

FAQ

1. Are you a manufacturer or a trading company?

We are a manufacturer which has 30 years' history.

2. Can you accept OEM or ODM?

Of course, Logo is also acceptable.

3. What is the delivery time?

About 10-20 days after the contract signing.

4. What is your payment methods?

T/T L/C Paypal West Union and others .

5. Where is your manufacturer? How to visit it?

Our factory located in Binhai New Area, Tianjin, China. Mainly producing pre-insulated pipes, mineral wool insulation products and other insulating materials. You can take a plane to Beijing or Tianjin, then take a train to our company.

6. How do we control our products' quality?

We have professional quality control workers and quality inspection machine to control the entire production quality. We can also provide an inspection which was offered by a third party.

7. Can I customize some other sizes of products?

Yes! We can according to the customer's request. If you have any other questions, please don't hesitate, contact us.

SERVICE

SERVICE

1. Timely response: to your inquiry in 24 hours, quickly respond mails and provide solutions.

2. Free sample: Sample and trial order are accepted for the quality evaluation.

3. Shorter delivery time: Book the earliest vessel or plane to guarantee the delivery time.

4. Professional Services: Provide high or cold temperature solutions and professionals installation and technology services for you.
